- Place of Origin: China
- Brand Name: Huiquan Pump
- Model Number: 14
Product Features

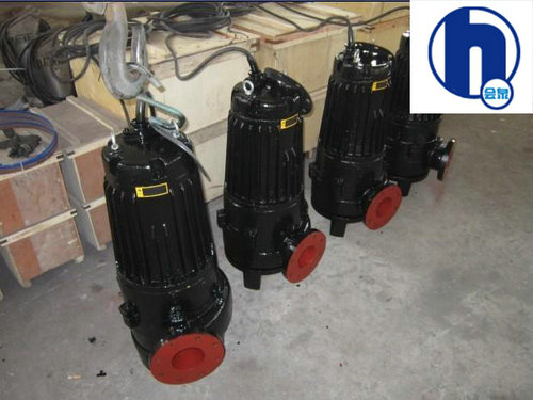

1, WQ submersible sewage pump with double blade impeller structure, greatly improving the dirt capacity
2, the mechanical seal with new frictions deputy and long-term operation of the oil into the interior;
3, the overall structure is compact, small size, low noise, energy-saving effect is remarkable, easy maintenance, user-friendly replacement;
4, automatic control cabinet according to the desired level changes, automatic control of pump super move and stop, without special care, extremely easy to use;
5, according to user needs with installation, it gives installation and maintenance of the arrival of a great convenience, but this may not have to get into the sump;
6, it is possible within the design range, and to ensure that the motor is not overloaded;
7, mechanical seal with anticorrosive hard tungsten titanium material, to enable safe more than 8000 hours of continuous operation.
Product Usage
1, WQ submersible sewage pump series rated voltage of 380V, 50Hz power frequency, when applicable
2, medium temperature does not exceed 40 degrees Celsius, medium density ≤1150kg / m3, PH value between 5-9 range;
3, no more than 1000 meters above sea level;
4, the transmission medium of viscosity does not exceed 1000CP;
5, the product must be completely dive into the work of running water, but diving depth of not more than 10m;
6, the main material of cast iron can not be used with strong corrosive media or in corrosive;
Note: WQ series non-clogging submersible sewage pump fixed installation or selection before use to make sure the actual pump conditions meet the above provisions to ensure the proper use of the product
