Product Features:

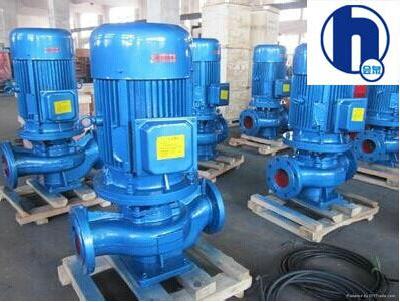

1, the pump for the vertical structure, import and export of the same caliber, and in the same center line as the valve installed in the pipeline, compact appearance, small footprint, construction investment is low, such as with the shield It can be placed outdoors.

2, the impeller mounted directly on the motor shaft extension, short axial dimension, compact structure, reasonable configuration of pump and motor bearings can effectively balance the radial and axial loads generated by operation of the pump, thus ensuring the smooth operation of the pump, small vibration, low noise.

3, seal with mechanical seal or mechanical seal assembly, the use of imported titanium alloy seal ring, medium and high temperature mechanical seal with carbide material, wear seal, can effectively extend the service life of mechanical seals.

4 Easy installation and maintenance, no need to open the system of roads, as long as remove the pump conjoined nut seat out all the rotor components.

5, namely the flow and head need to use pumps in series and parallel operation mode according to requirements.

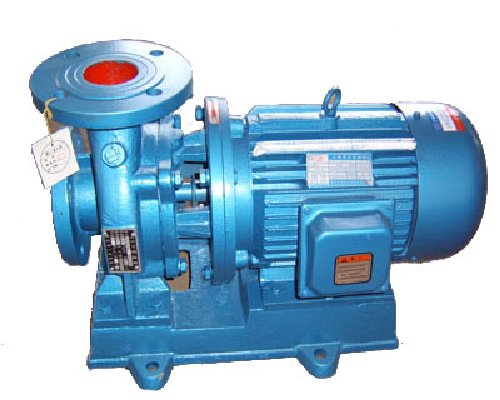

6, using vertical and horizontal pumps installed according to the requirements of piping layout.

The main purpose:

1, ISG vertical pipeline centrifugal pump, other liquids used for the transport of water and physical and chemical properties similar to water, apply to industrial and urban water supply and drainage, high-rise building pressurized water, garden irrigation, fire booster, long-distance transport , HVAC refrigeration cycle, bathrooms and other warm and cold pressurized water cycle and supporting equipment, the use of temperature T <80 ℃.

2, IRG (GRG) Vertical hot water (heat) circulation pump is widely used in: energy, metallurgy, chemicals, textiles, paper, as well as guest houses and other high temperature hot water boiler loop pressurized transport and urban heating system circulation pump use , IRG type temperature T <120 ℃, Perot GRG type temperature T <240 ℃.

3, IHG vertical pipeline chemical pump for conveying solid particles, corrosive, liquid viscosity similar to water, apply to the petroleum, chemical, metallurgical, power, paper, food, pharmaceutical and synthetic fiber and other departments, the use of temperature It is 20 ℃ ~ 120 ℃.

4, YG vertical pipeline oil transport gasoline, kerosene, diesel and other petroleum products are transported medium temperature of -20 ℃ ~ 120 ℃.

Working conditions:

1, the suction pressure ≤1.0MPa, the maximum working pressure or pump system ≤1.6MPa, pump suction pressure pump head ≤1.6MPa, hydrostatic test pump pressure of 2.5MPa, please specify when ordering system working pressure. Pump system working pressure greater than 1.6MPa when ordering separately should be made, in order to manufacture the pump flow part and a coupling portion using steel materials.

2, the ambient temperature <40 ℃, relative humidity <95%.

3, the transmission medium volume fraction of solid particles per unit volume does not exceed 0.1%, particle size <0.2mm.

Note: If using the medium with small particles, please when ordering so that manufacturers use wear-resistant mechanical seal.

Operating Conditions

1, the suction pressure ≤1.6 Mpa, the maximum working pressure or pump system ≤1.6Mpa, namely suction pressure pump head ≤1.6Mpa, hydrostatic test pump pressure 2.5Mpa, please specify when ordering system working pressure. Pump system working pressure greater than 1.6Mpa should be made when ordering separately, in order to manufacture the pump flow part and a coupling portion using steel materials.
