Product Details
  • Place of Origin:  China
  • Brand Name:  Huiquan Pump
  • Model Number:  12

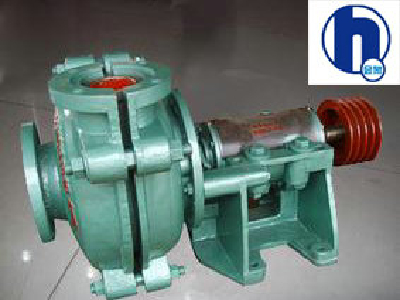

AH (R), M-type, HH-type pumps are cantilevered, horizontal centrifugal slurry pump, it has a vertical in the open and double casing structure. HH type pump pump liner and impeller wear-resistant metal; M, AH pump impeller wear-resistant metal or rubber material, the body having a replaceable metal liner or rubber-lined, lined with may have been used worn so far, without replacement, extended service intervals and lower operating costs.

Introduction AH slurry pumps pump pump cover and flow components: This series pumps are horizontal, vertical in the form of double-shell structure pump slurry pump. Pump body and cover with replaceable metal liner, liner made of high-chromium alloy, worn lining may have been used so far, extended service intervals and lower operating costs. Outlet direction of the pump can be installed eight angles of rotation. Bearing assembly: pump bearing assembly using cylindrical structure, easy to adjust the gap between the impeller and the front fender, the overall maintenance can be split out. Bearings with grease. Seal (seal): The pump shaft seal types are packing seal, expeller seal and mechanical seal. Transmission: There is a V-belt drive, flexible coupling drive, gear reducer drive, fluid coupling drive, variable frequency drives, SCR speed control and so on. V-belt drive which has CL, CV, CR, ZL, ZV, ZR drive.

Overall performance: wide performance range of the pump, cavitation performance, high efficiency. Tandem technology can be used to meet the long-distance transport. There are a variety of metal wetted parts are available, and increased depth. Using a variety of speeds and multiple variants ways, causing the pump to operate at optimum mining. Long life, high efficiency, to meet the many types of harsh transport conditions. Structure: AH, M-type pumps are cantilevered, horizontal double-shell axial suction centrifugal slurry pump. Pump discharge outlet location may need to press 45 ℃ interval, eight different rotation angles installation.

Material: AH, M-type pump pump having replaceable wear-resistant metal lining, impeller, jacket, shield and other {a} 162 {/ a} are made of wear-resistant metal.

Use: in a small area of low lift flow, can deliver strong abrasive slurry; in the high-lift transport large flow area light abrasive slurry. Used in metallurgy, mining, coal, electricity, building materials and other industrial sectors conveying strong abrasive, high concentration slurry, the type of multi-stage pump can also be used in tandem.

Seal type: AH, M-type pump shaft seal can be packing seal, vice impeller seals, packing plus auxiliary impeller seal, mechanical seals and other types. Drive Type: DC Direct drive, CR parallel belt drive, ZVZ upper and lower belt drive, CV vertical belt drive and other types.


  • Place of Origin:  China
  • Brand Name:  Huiquan Pump
  • Model Number:  12
